1.High performance diodes,powerful output,low divergence<1.0mrad(full angle)
2.Larger scan angle,sharp and pure laser beam,excellent heat dissipation
3.Pangolin FB3/FB4 available,control by ILDA,DMX,SD CARD etc.
4.Professional dust-free case design,easy to install and portable
5.Longer life time,used in indoor or outdoor shows.
DK-RGB 30W
Specifications:
Red (637nm):10w
Green(520nm):8w
Blue(445nm):12w
Total power:RGB 30W
Beam divergence:<1mrad(full angle)
Beam diameter:<5mm
Input Voltage:AC90-245V
Modulation : Analog 50KHZ
Power consumption:50W
Controller:Pangolin FB3/FB4 for optional
Scanning:
PT-A30,35kpps,Max scan angle:60 degree
40K, EMS 8000 60K available required
Operation Modes:
Auto,sound active,DMX512,Master/slave,ILDA,SD card
L*W*H: 80.4cm*75.4cm*46.8cm

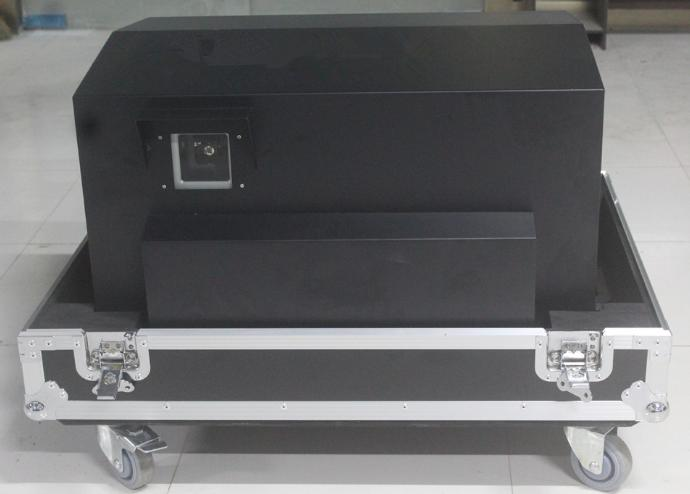

Packing with flight case: 90cm*79cm*51cm Weight:80kg
Lifetime:>5000 hours
Operation Temperature:10-35℃
Cooling way:Fan cooling
Protection rating:IP52
Laser safety:
Key switch, Interlock interface.Overload protection on X and Y Galvo for best safeguarding against failure.Mechanical shutter optionally available.
Compliance: FDA/CDRH, CE, ROHS
Warranty: 1 years after-sale service
